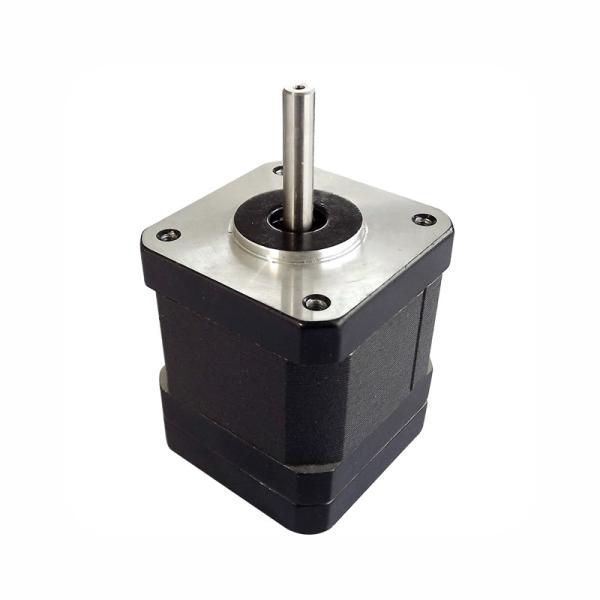

Brushless DC motor 24V 26W 4000RPM J42BLS40-240A for DIY 42*42*40mm Shaft diameter 5mm 3phase BLDC motor

Brand Name : KIMBROUGH

Model Number : J42BLS40-240A

Certification : CE

Place of Origin : China

MOQ : 1pc

Supply Ability : 10000pcs per month

Packaging Details : carton

Output Power : 26W

Continuous Current(A) : 1.65A

Torque : 0.063N.m

Contact Now

Brushless DC motor 24V 26W 4000RPM J42BLS40-240A for DIY 42*42*40mm Shaft diameter 5mm 3phase BLDC motor

Winding type Star
Hall effect angle 120°
Insulation class B
Ambient temperature range -20°C ~ +50°C
Insulation resistance 100MΩMin 500VDC
Dielectric Strength 500VDC 1 minute

Specification :

Model J42BLS40-240A J42BLS60-240A J42BLS80-240A
Number of poles 8
Number of phase 3
Nominal Voltage VDC 24
Rated speed RPM 4000
Rated torque Nm 0.063 0.125 0.165
Rated current Amps 1.65 3.4 4.5
Output power Watts 26 52 69
Peak torque Nm 0.185 0.38 0.55
Torque constant Nm/A 0.035 0.041 0.042
Back EMF V/k RPM 3.17 3.13 3.28
Rotor Inertia kg.mm2 5.2 9.3 13.4
Body length(L) mm 40 60 80
Mass kg 0.33 0.48 0.63

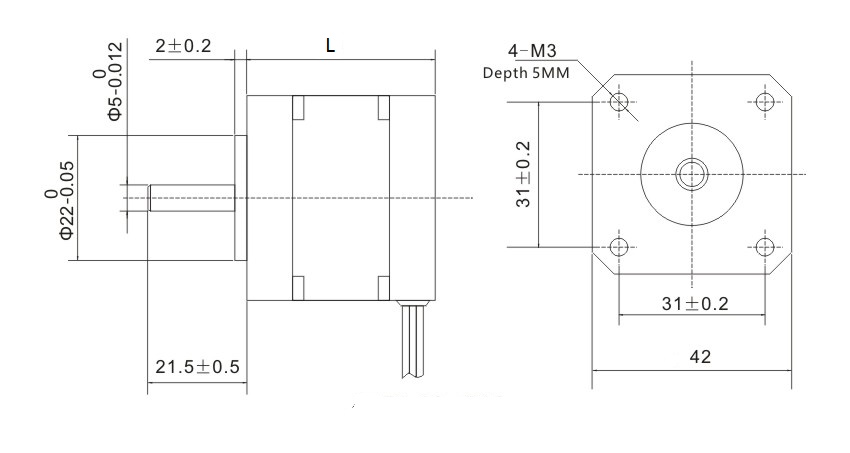

Dimension unit:mm

Brushless DC motor 24V 26W 4000RPM J42BLS40-240A for DIY 42*42*40mm Shaft diameter 5mm 3phase BLDC motor

Wiring diagram

Brushless DC motor 24V 26W 4000RPM J42BLS40-240A for DIY 42*42*40mm Shaft diameter 5mm 3phase BLDC motor
