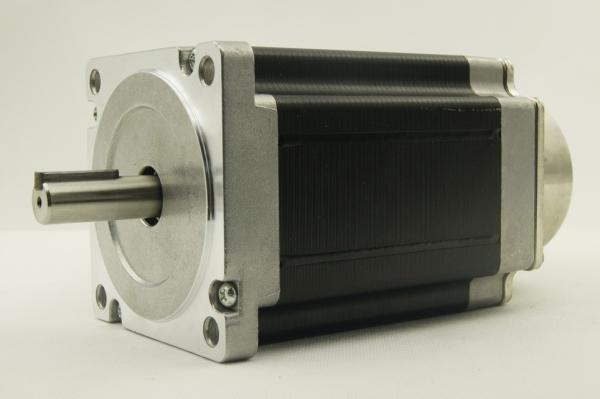

NEMA 42 Stepper Motor with Brake

Brand Name : Jingbo

Model Number : NEMA 42 Stepper Motor with Brake

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western union

Supply Ability : 999

Delivery Time : in stock

Packaging Details : carton

Contact Now

NEMA42 Stepper Motor with Brake

General specifications

Stepping accuracy………………±5%

Temperature rise…………………80℃ Max

Ambient temperature……………-20℃~+50℃

Insulation resistance……………100MΩMin 500VDC

Dielectric strength………………500V AC 1minute

Allowable radial load……………0.02mm Max (450g load)

Allowable thrust load……………0.08mm Max (450g load)

Specifications

Model

Step Angle

(°)

Length

L(mm)

Holding Torque

(N.m)

Current

(A/Phase)

Resistance

(Ω)

Inductance

(mH)

Rotor inertia

(g.cm2)

Weight

(Kg)

 Shaft diameter(mm) Shaft extension(mm) Matched driver
J110HB99-05 1.8 99 11 5.5 0.72 9.8 5500 5.0 19 Feather key 6x35 JB2722M
J110HB150-06 150 21 6.5 0.8 9.4 10900 8.4 19 Feather key 6x35 JB2722M
J110HB201-08 201 28 8.0 0.6 11 16200 11.7 19 Feather key 6x35 JB2722M

Note: conventional brake is power brake, the general brake voltage is DC24V, but we can design according to clients’ requirement

Dimension unit:mm

NEMA 42 Stepper Motor with Brake

Connections

NEMA 42 Stepper Motor with Brake
