3-phase hybrid stepping motor J368

Product Categories
Shenzhen Jingbo Mechanical & Electrical CO.,Ltd
Contact Now

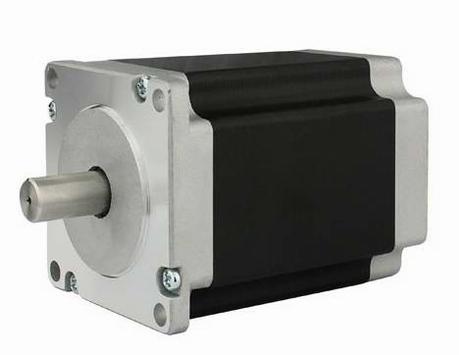

3-phase hybrid stepping motor J368

Place of Origin : Guangdong, China

Brand Name : Jingbo

Model Number : J368

Certification : CE

Step Angle(degree) : 1.2

Holding Torque(N.m) : 1.5

Current(A/Phase) : 5.8

Delivery Time : in stock

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per week

MOQ : 1pc

Contact Now

3-phase hybrid stepping motor J368

Gerneral specifications

Temperature rise……………………80℃Max

Ambient temperature………………-20℃～+50℃

Insulation resistance………………100MΩMin 500VDC

Dielectric strength……………………500V AC 1minute

Allowable radial load………………0.06mm Max (450g load)

Allowable thrust load………………0.08mm Max (450g load)

■Specifications

Model
Step Angle
(°)
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Power supply
Rotor inertia
(Kg.cm2)
Weight
(Kg)
Matched drive
J364
1.2
40.5
0.45
5.2
DC40V5A
0.1
0.5
JB364MA
J366
53.5
0.9
5.6
DC40V5A
0.22
0.75
JB364MA
J368
76.4
1.5
5.8
DC40V5A
0.38
1.1
JB364MA
■Dimension
3-phase hybrid stepping motor J368

Model
D(mm)
Note
J364
6.35
3×15
J366
6.35
3×15
J368
8.0
3×3×15

■Frequency-torque characteristics

■Connections

3-phase hybrid stepping motor J368
