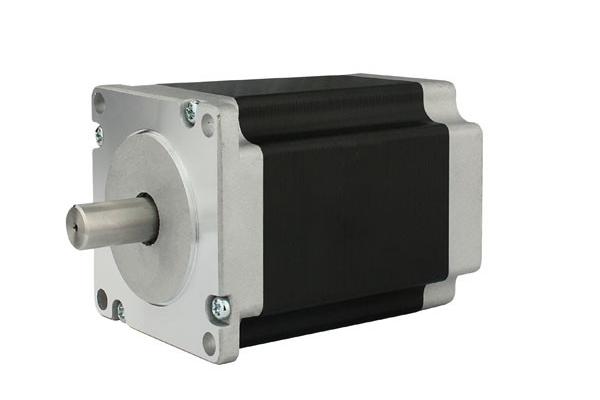

1.2 Size 57mm High Torque Hybrid Stepping Motor J368

Place of Origin : Guangdong, China

Brand Name : Jingbo

Model Number : J368

Certification : CE

Step angle(degree) : 1.2

Holding torque(N.m) : 1.5

Current(A/Phase) : 5.8

Delivery Time : in stock

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per week

MOQ : 1pc

Contact Now

1.2° Size 57mm High Torque Hybrid Stepping Motor J368

General specifications

Stepping accuracy_5%

Temperature rise_80cMax

Ambient temperature_-20c~+50c

Insulation resistance_100MMin 500VDC

Dielectric strength_500V AC 1minute

Allowable radial load_0.06mm Max (450g load)

Allowable thrust load_0.08mm Max (450g load)

Specifications

ModelStep Angle ()Length L(mm)Holding Torque (N.m)Current (A/Phase)Power supplyRotor inertia (Kg.cm2)Weight (Kg)Matched drive
J3641.240.50.455.2DC40V5A0.10.5JB364MA
J36653.50.95.6DC40V5A0.220.75JB364MA
J36876.41.55.8DC40V5A0.381.1JB364MA

Specifications

Dimension
1.2 Size 57mm High Torque Hybrid Stepping Motor J368
Model
D(mm)
Note
J364
6.35
315
J366
6.35
315
J368
8.0
3315

Frequency-torque characteristics

1.2 Size 57mm High Torque Hybrid Stepping Motor J368

Connections

1.2 Size 57mm High Torque Hybrid Stepping Motor J368
