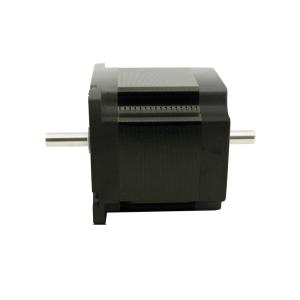

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

Product Categories
Shenzhen Jingbo Mechanical & Electrical CO.,Ltd
Contact Now

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

  • 1
  • 2
  • 3

Brand Name : KIMBROUGH

Model Number : 57HS56B43006/57HS56B43008

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 2000pcs per week

Delivery Time : in stock

Step Angle : 1.8 degree

Holding torque : 1.3N.m(186oz-in)

Current(A/Phases) : 3.0A

Motor length : 56mm

Contact Now

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -10°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

■ Specifications
Model Step Angle (°) Length L(mm) Holding Torque (N.m) Current (A/Phase) Resistance (Ω) Inductance (mH) Rotor inertia (g.cm2) Weight (kg) Shaft diameter (mm) Axis stretch (mm) Matched driver
57HS41B43006 1.8 41 0.6 3.0 0.7 1.4 120 0.45 6.35 Leveling block 0.5x20 JB542M
57HS51B43006 51 1.0 3.0 0.74 1.2 275 0.65 6.35 Leveling block 0.5x20
57HS56B43006 56 1.3 3.0 0.75 2.4 300 0.7 6.35 Leveling block 0.5x20
57HS56B43008 56 1.3 3.0 0.75 2.4 300 0.7 8.0 Leveling block 0.5x20
57HS76B44006 76 2.3 4.0 0.5 2.0 480 1.0 6.35 Leveling block 0.5x20
57HS76B44008 76 2.3 4.0 0.5 2.0 480 1.0 8.0 Leveling block 0.5x20
57HS85B44008 85 2.6 4.0 0.8 3.2 520 1.2 8.0 Leveling block 0.5x20
57HS115B44008 115 3.5 4.0 0.5 2.3 600 1.7 8.0 Leveling block 0.5x20

Model Forward shaft Rear shaft
Shaft diameter(mm) Axis stretch(mm) Shaft diameter(mm) Axis stretch(mm)
57HS56B43006 6.35 Leveling block 0.5x20 6.35 Leveling block 0.5x19
57HS56B43008 8.0 Leveling block 0.5x20 8.0 Leveling block 1x19
57HS76B44006 6.35 Leveling block 0.5x20 6.35 Leveling block 0.5x19
57HS76B44008 8.0 Leveling block 0.5x20 8.0 Leveling block 1x19

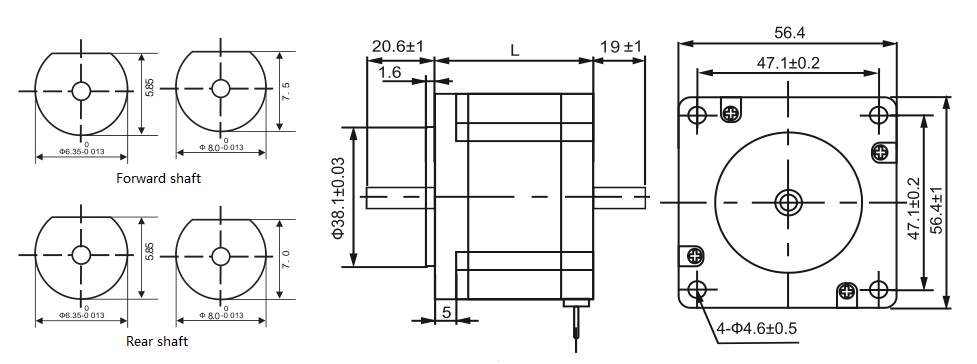

■Dimension Unit:mm

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

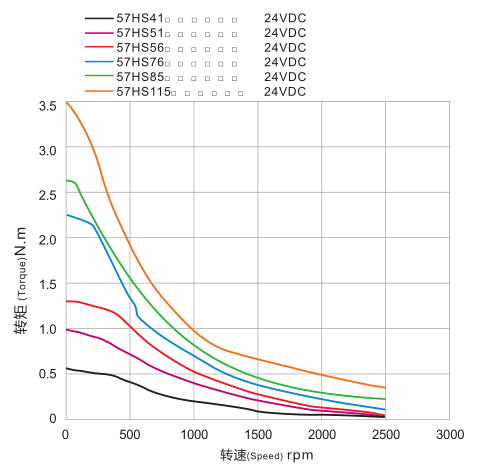

■Frequency-torque characteristics

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A

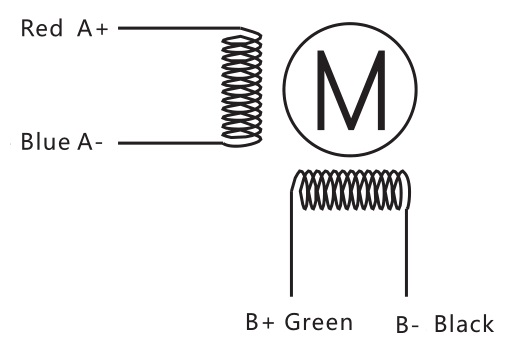

■Connections

4wires double shaft NEMA23 stepper motor 1.3N.m(186oz-in) motor length 56mm shaft diameter 6.35/8.0mm 3.0A
