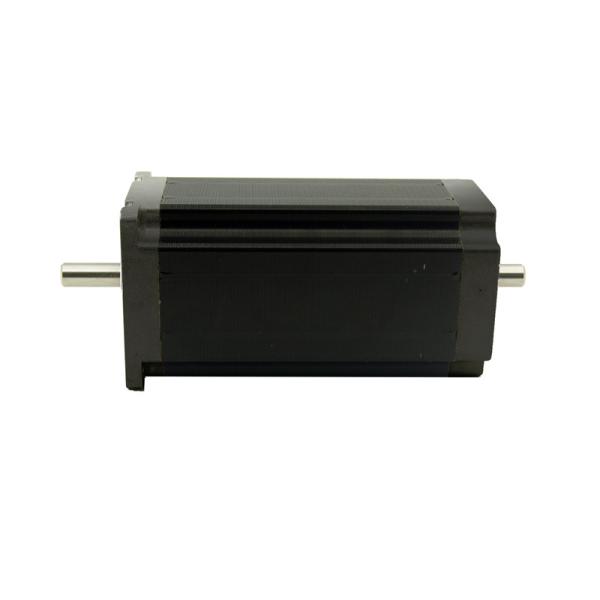

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A

Product Categories
Shenzhen Jingbo Mechanical & Electrical CO.,Ltd
Contact Now

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A

  • 1
  • 2
  • 3

Brand Name : KIMBROUGH

Model Number : 57HS115B44008

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1pc

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 1000pcs per week

Delivery Time : in stock

Step Angle : 1.8 degree

Holding torque : 3.5N.m(500oz-in)

Current(A/Phases) : 4.0A

Motor length : 115mm

Contact Now

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A

General specifications

Step Angle Accuracy: 5%

Temperature rise: 80°c Max

Ambient temperature: -10°c~+50°c

Insulation resistance: 100MΩ Min 500VDC

Dielectric strength: 500V AC 1minute

Shaft Radial Play: 0.02mm Max(450g-load)

Shaft Axial Play: 0.08mm Max(450g-load)

■ Specifications
Model Step Angle (°) Length L(mm) Holding Torque (N.m) Current (A/Phase) Resistance (Ω) Inductance (mH) Rotor inertia (g.cm2) Weight (kg) Shaft diameter (mm) Axis stretch (mm) Matched driver
57HS115B44008 1.8 115 3.5 4.0 0.5 2.3 600 1.7 8.0 Leveling block 0.5x20 JB542M
Model Forward shaft Rear shaft
Shaft diameter(mm) Axis stretch(mm) Shaft diameter(mm) Axis stretch(mm)
57HS115B43008 8.0 Leveling block 0.5x20 8.0 Leveling block 1x16

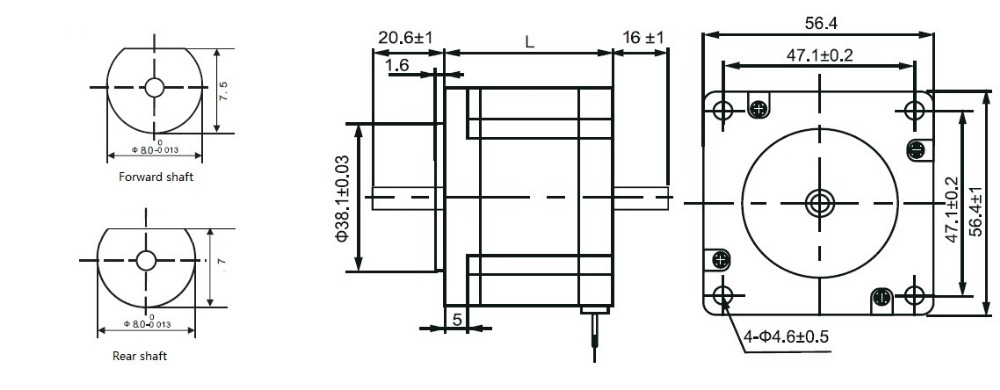

■Dimension Unit:mm

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A

■Frequency-torque characteristics

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A

■Connections

4wires double shaft NEMA23 stepper motor 3.5N.m(500oz-in) motor length 115mm shaft diameter 8.0mm 4.0A
